Timed Stages (Attack, Decay and Release) have a range of 1ms to 10 seconds

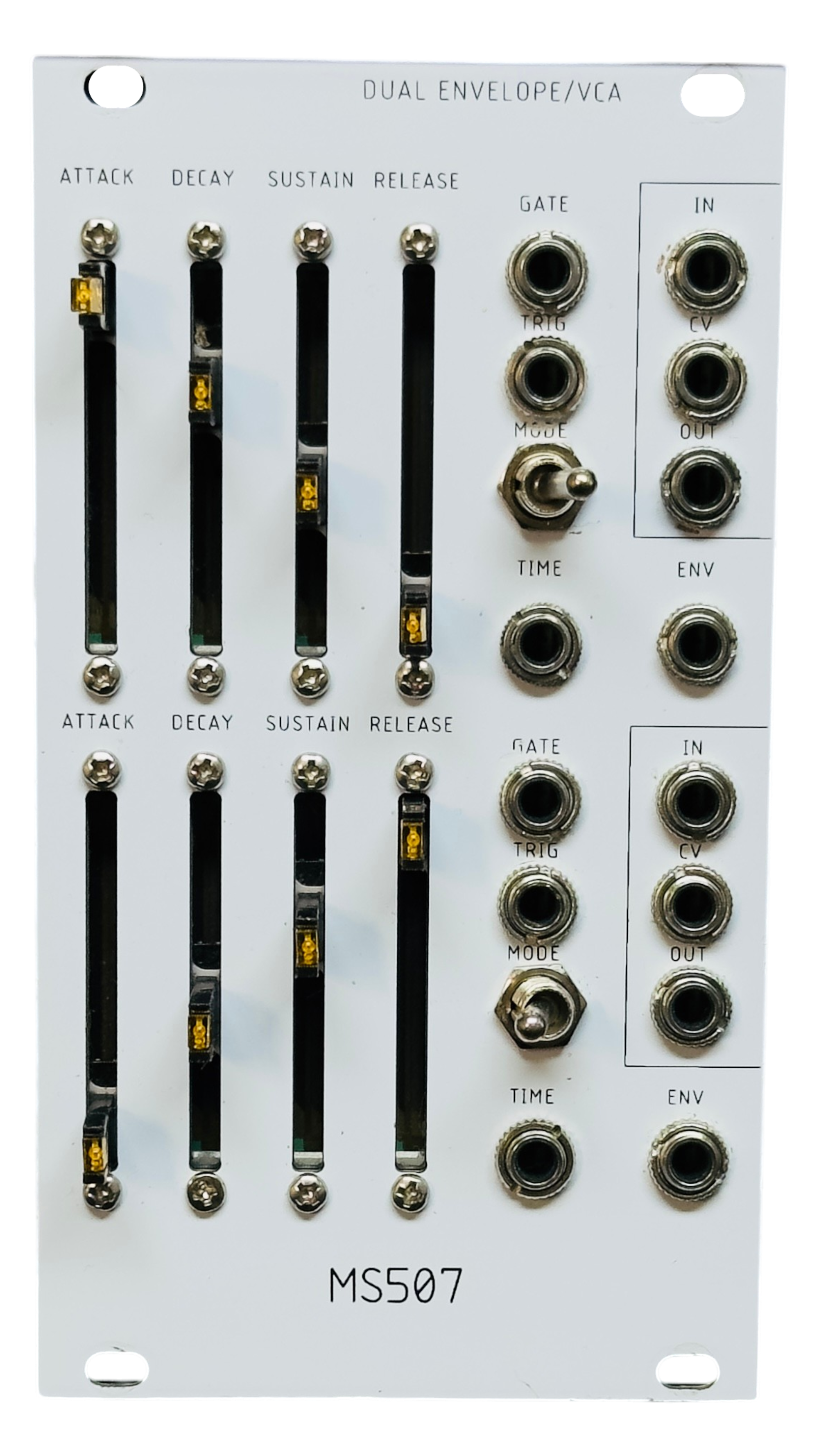

30mm LED Sliders for A/D/S/R controls. LED brightness follows the Envelope shape for visual feedback.
Trigger Input Used to retrigger the envelope from the beginning while gate is high (5V). Can also be used for simpler envelopes (i.e. AD, AR, ASR)
Mode Switch Selects between 3 operation modes
ADSR Normal synth envelope.
Gated Cycle will loop the Envelope only while the gate is high
Cycle mode loops endlessly, In this mode the TIME CV will act as frequency modulation for the resulting LFO.
Cycle has a frequency range of 0.03Hz to ~300Hz
Time CV shortens envelope length (All timed stages A,D and R)
ENV Out Voltage output for Envelope 0-5V

VCA Can be used independently of the Envelopes.
CV IN is normalled to the corresponding ENV Out. 5V for maximum volume 0V for minimum.
Set up initially for processing an audio signal, the VCAs can also be used to CV control the Envelope’s Level by patching the ENV out into the VCA input and using an external control for CV IN (e.g. Velocity, LFO, Sequencer etc.)
