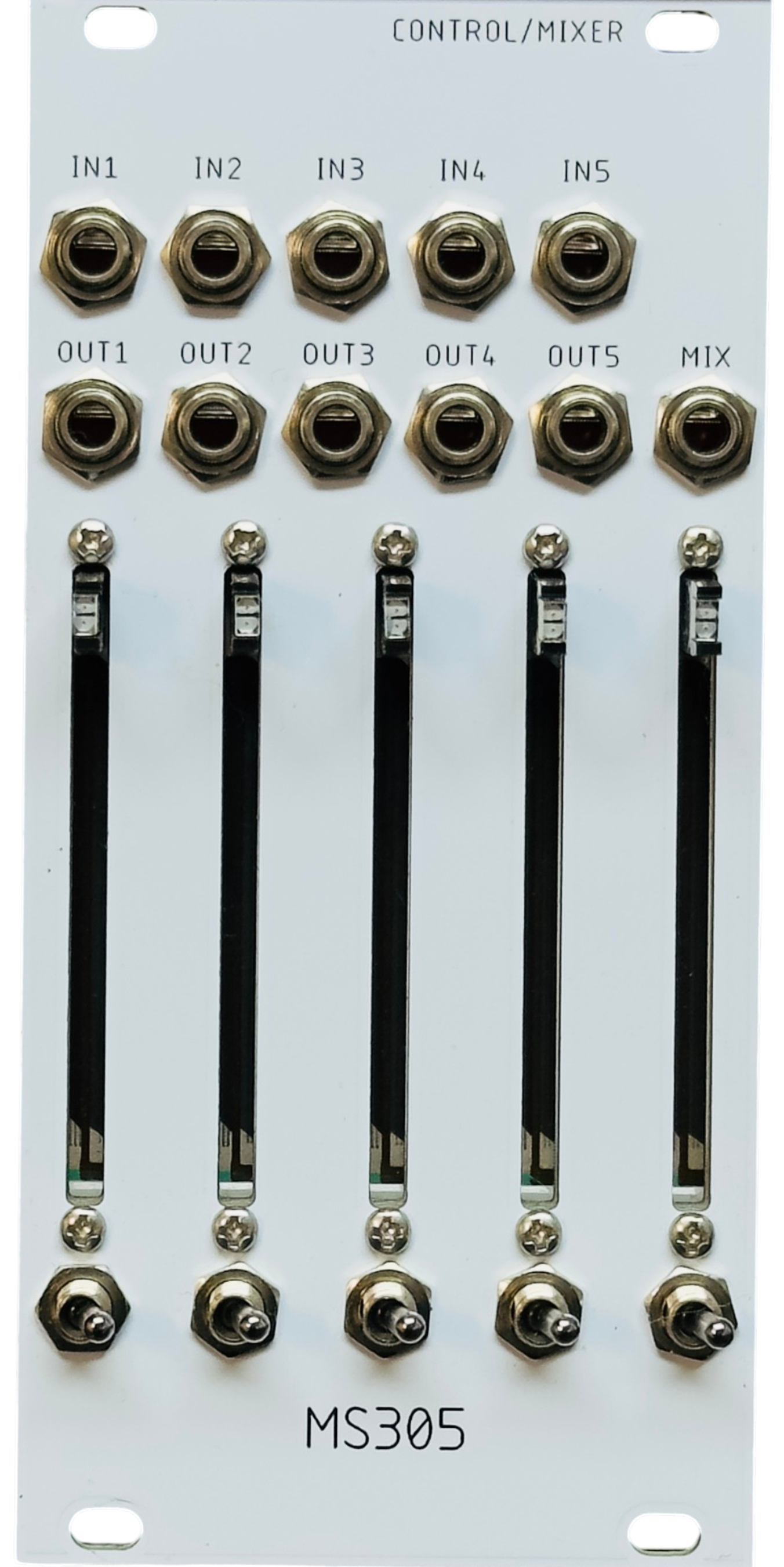

5 Channel Attenuator/Attenuverter
Designed mainly for CV but will work fine with audio.
Each Channel has a 45mm control fader with LEDs indicating the voltage level.
Red is positive voltages, yellow is negative. The LEDs will follow the voltage of whatever runs into the input.
Each channel is connected to 5V when nothing is patched to the input jack.
The Mix output sums all channels together, patching a cable into one of the outputs will remove it from the mix
The switches at the bottom select whether that channel is an Attenuator (0-5V) or Attenuverter (-5 to +5).

For further information and any questions, feel free to contact Matt on wywsmd@gmail.com
