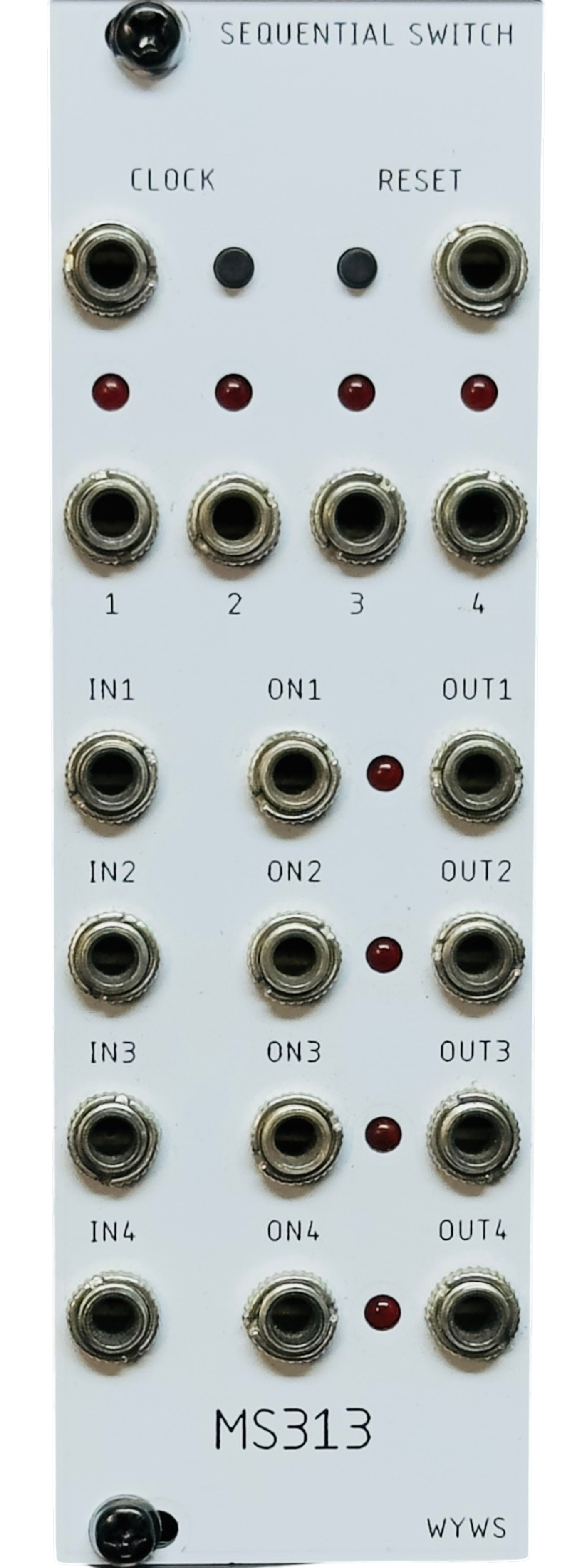

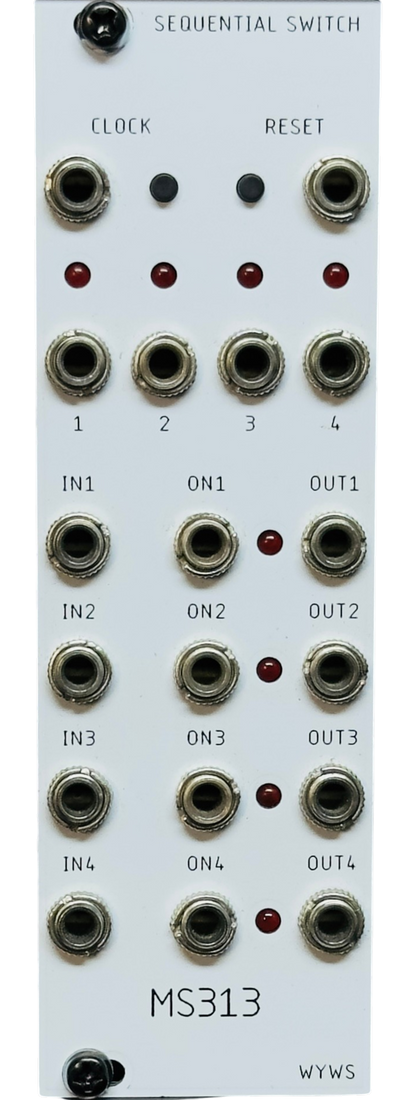

4 Independent CV controlled switches (rows 1-4) normalled to a 4 step gate sequencer in the top half of the module.

Gate sequencer has a CLK input a RST input and gate outs for each of the four steps. LEDs show the active step.

Each row has an INPUT (left of the module) a SWITCH CV (Centre and LED) and an OUTPUT (right of the module). The switches are bi-directional so inputs can be used as outputs and outs as ins.

A clock signal/manual step button will step through which row is active.
Reset jack can be patched to the gate sequencer for 2 step or 3 step modes.

If a control signal is connected to a row's switch CV (centre jack) it will break the normalling to the gate sequencer and that row can be used as an individual on/off switch. All four switches can be active at once with external gates.

Inputs/Outputs are normalled together so the module can be used as 4 individual switches or a 1:4 or 3:1 etc.

Will switch full +/-12V range, both CV and audio

For further information and any questions, feel free to contact Matt on wywsmd@gmail.com
