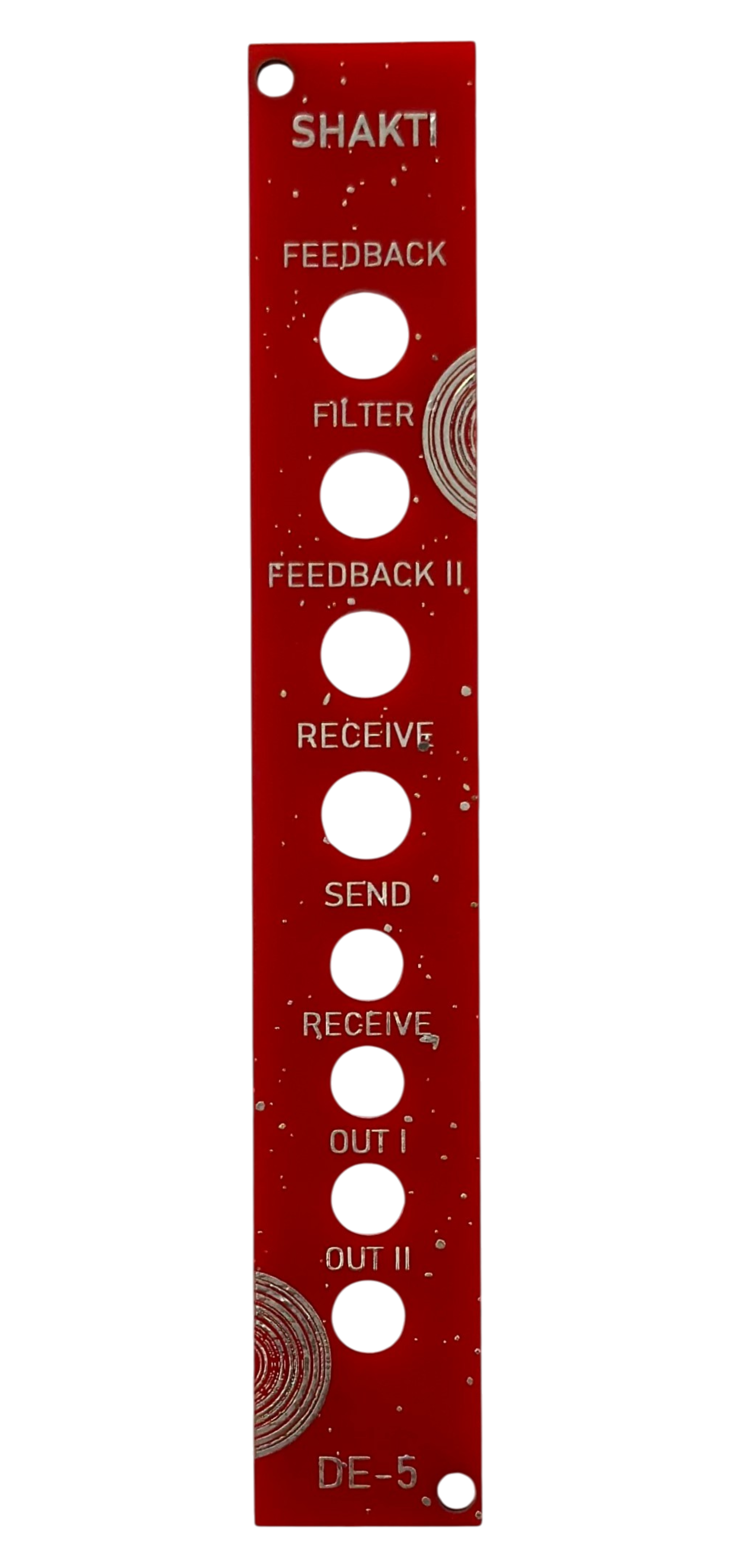

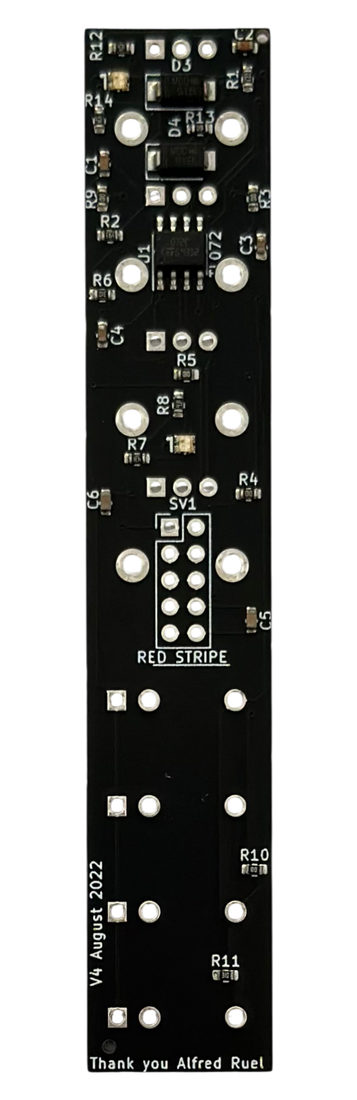

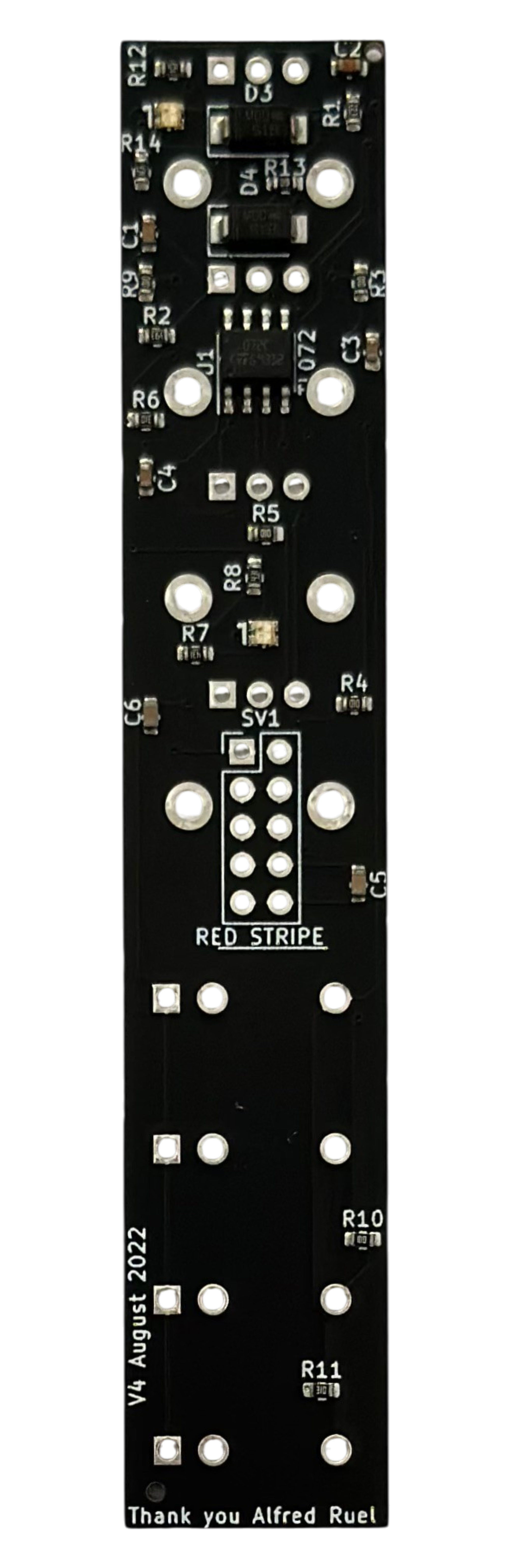

Note: This is a Panel & PCB set only

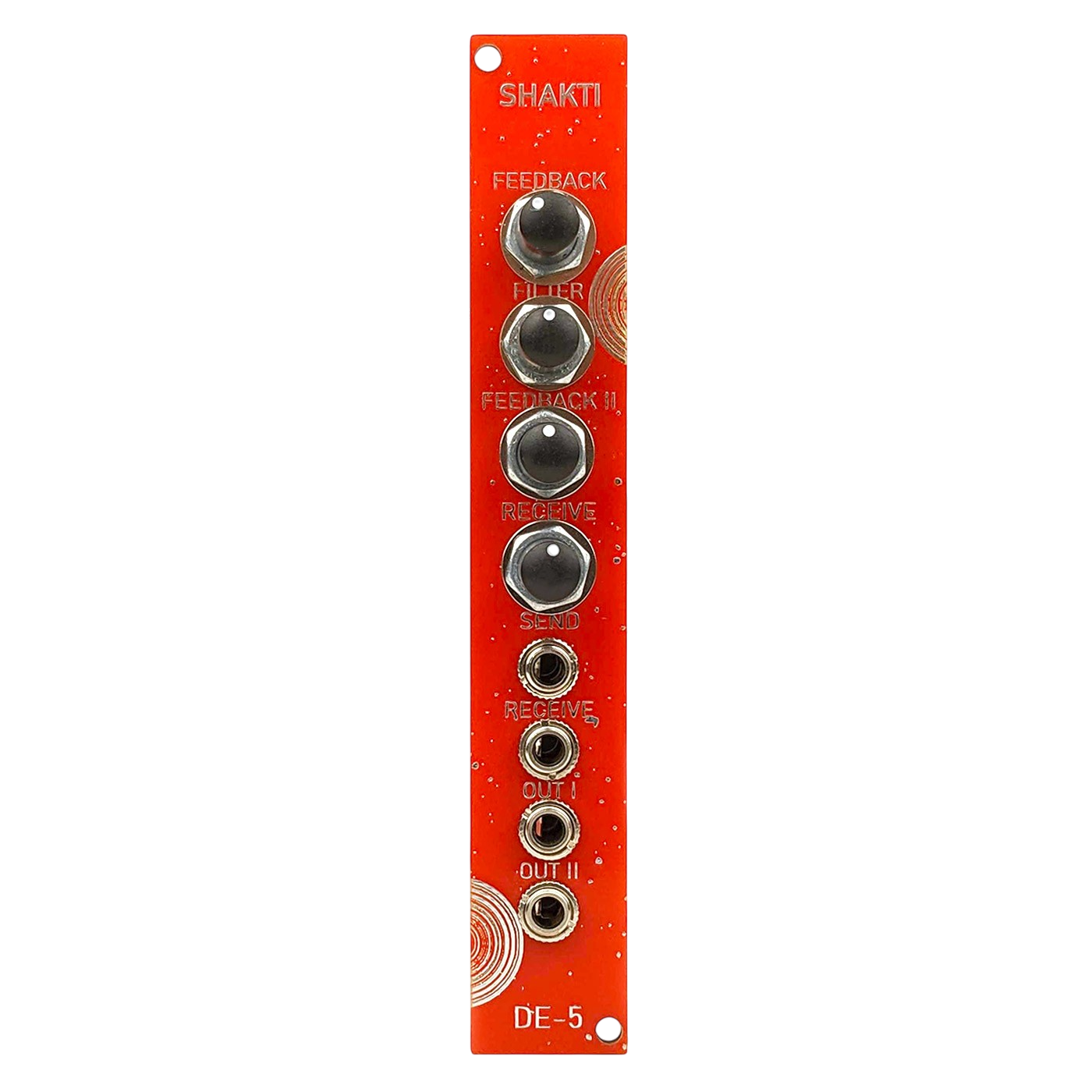

Shakti is a 4hp no-input mixer in eurorack format.

Shakti contains no less than 3 different feedback loops in a very small 4HP package. There are 2 internal loops represented by the pots FEEDBACK and FEEDBACK II.
Where FEEDBACK is a normal signal, FEEDBACK II is an inverted signal and RECEIVE is an external path (one that you send out from the module, through any other modules of your choice and then back again).

When working with feedback all three of these will intermingle fast which means both FEEDBACK pots and RECEIVE knobs will affect each other. A filter is attached to the first feedback path but since all signals will intermingle in this circuit (it is a mixer after all) the filter will affect all three paths.

Starting with the knob in the middle, it has a lowpass filter to the right and high pass to the left. OUTPUT I contains the inverted signal whereas OUTPUT II contains the normal signal. Shakti can be used as a stereo module since the 2 outputs can differ drastically at times.
