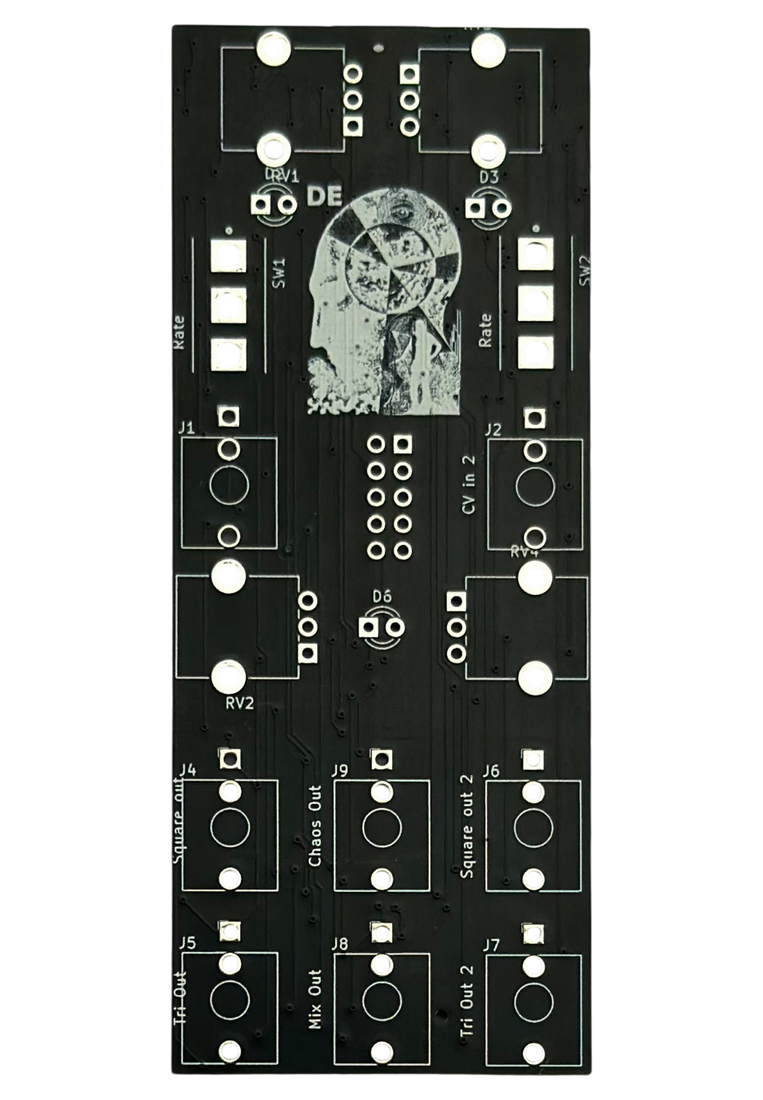

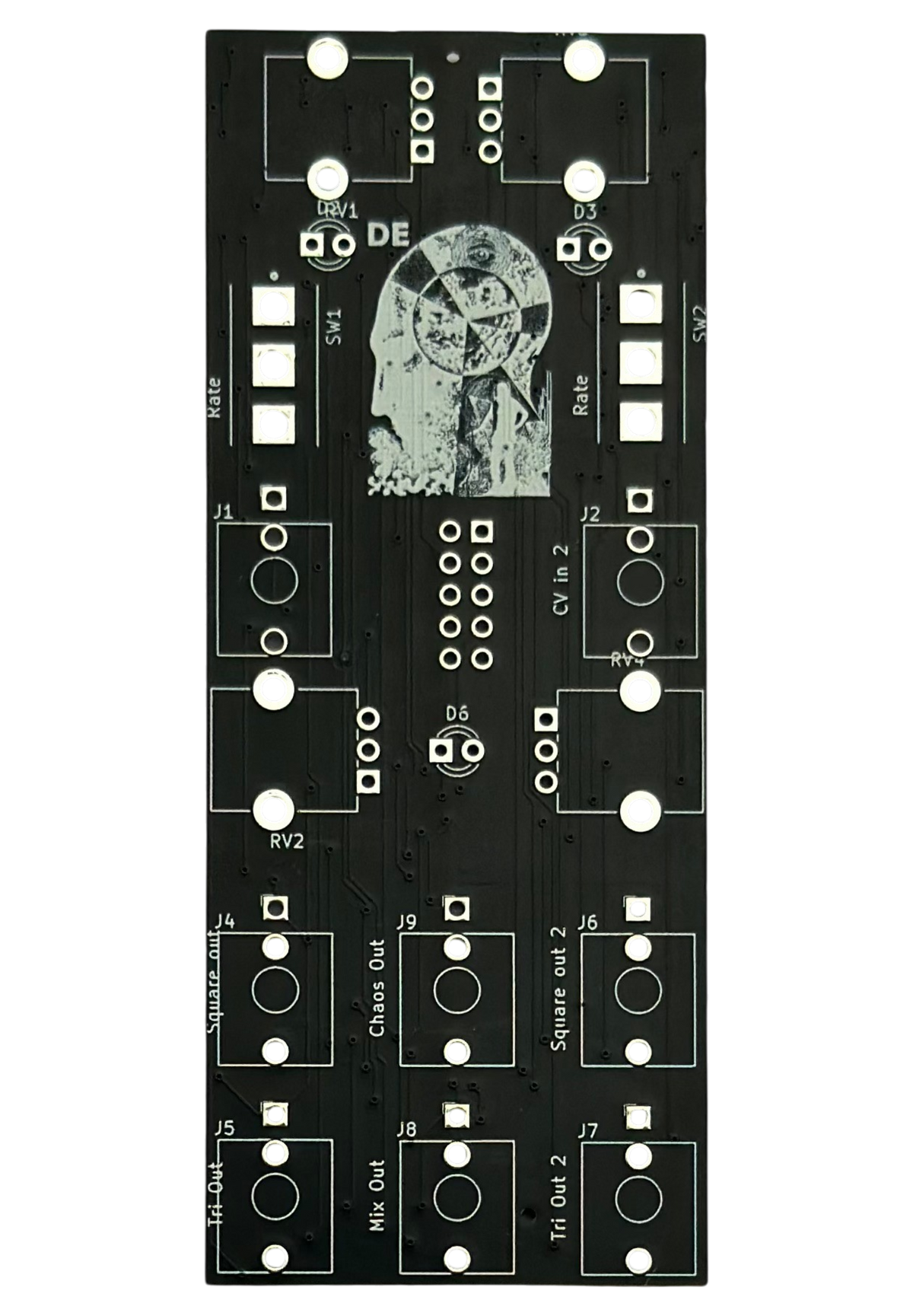

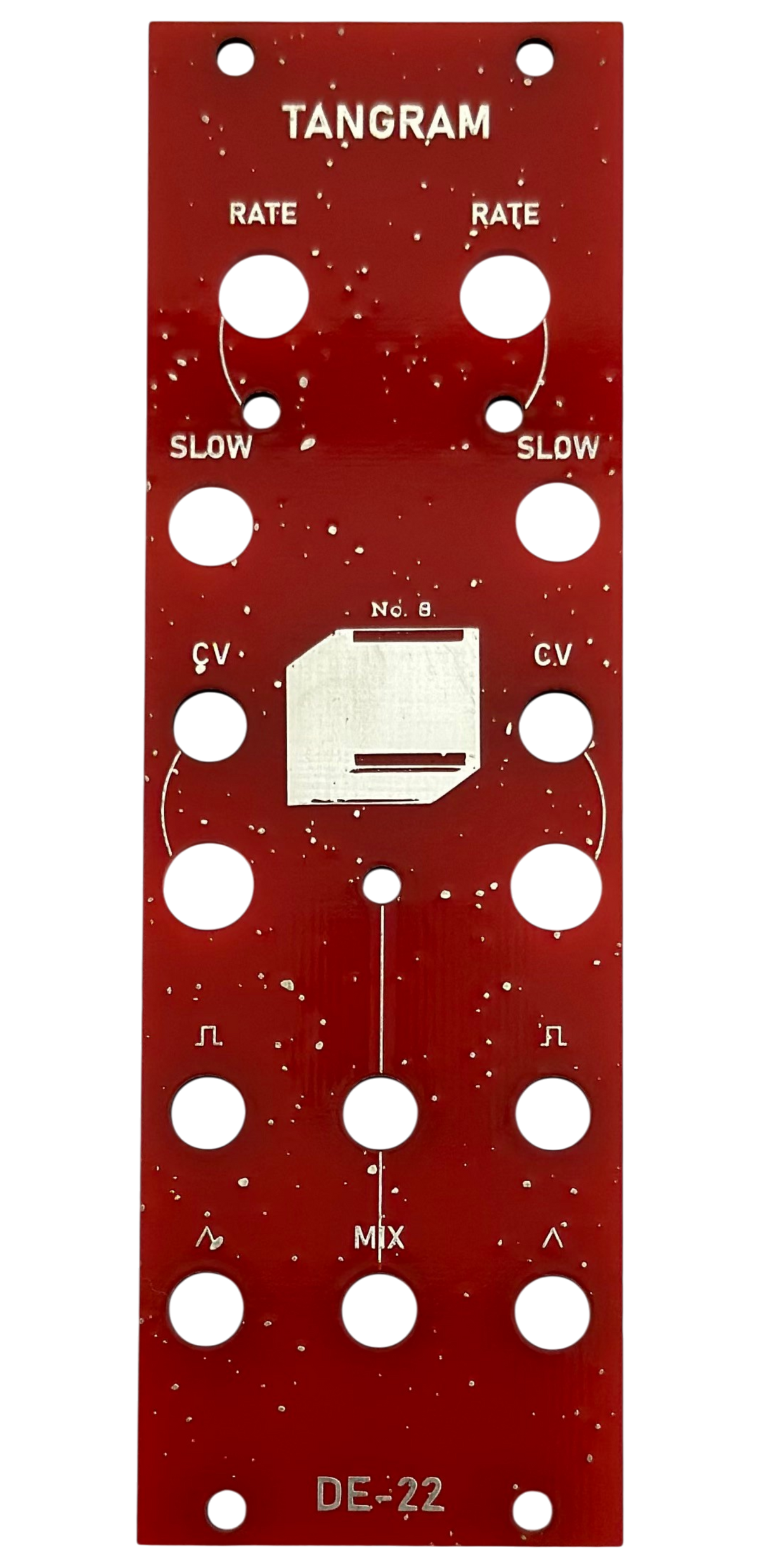

Note: This is a Panel & PCB set only

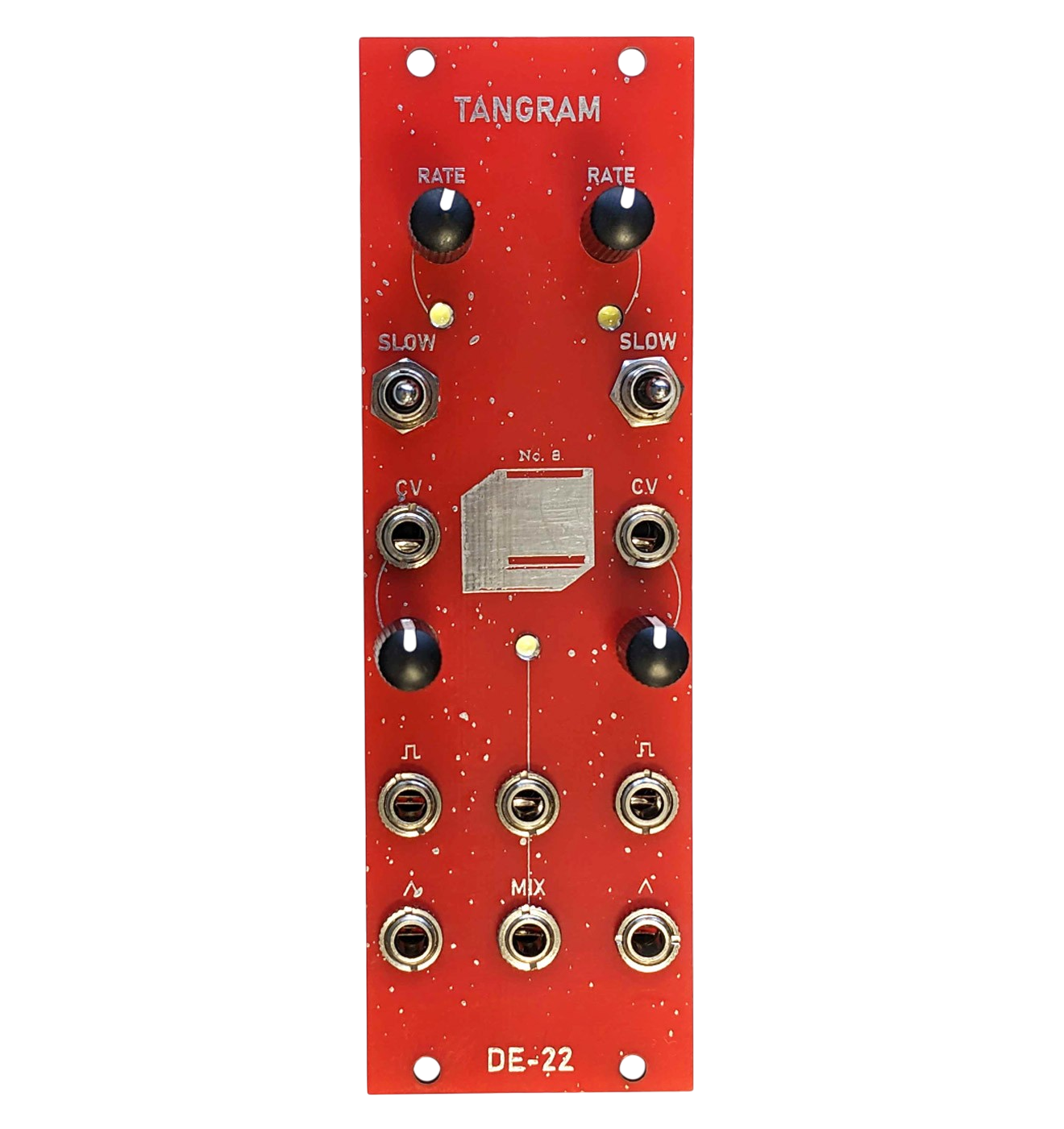

Tangram is a 8HP Dual LFO with a chaotic core! Each LFO has 2 outputs, triangle and square which are 10v ppv. The chaotic internal CV signals (of which there are 2) are normalled to the CV inputs of each LFO. Using the corresponding pots for each CV input lets you dial in the right amount of the chaotic signal. This allows each LFO to behave in a semi-random fashion.

Each LFO has a range switch (labeled “SLOW” on the panel) switching between two different initial speeds of each LFO. There is also a mix output which blends both of the chaotic signals with the Square wave from LFO 1 and the Triangle from LFO 2 thus creating very interesting waveforms and patterns (especially when applying CV control over the LFO’s like mentioned above). The pure chaotic CV signal is also available through the unlabelled output just above the mix output.
