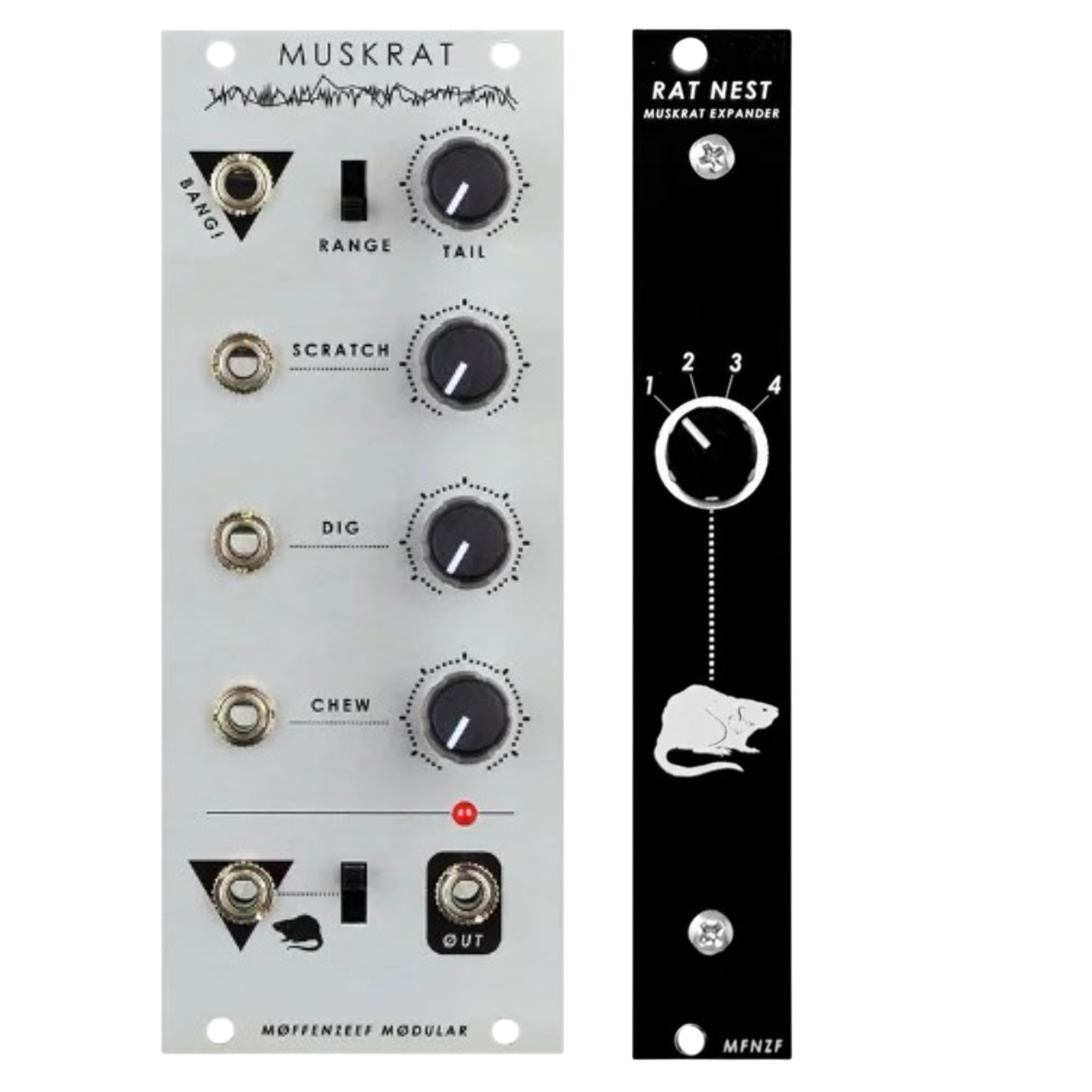

- CHEW - PITCH WITH BIPOLAR CV INPUT
- DIG - WAVETABLE SELECTION WITH BIPOLAR CV INPUT
- SCRATCH - PHASE DISTORTION WITH BIPOLAR CV INPUT
- BANG! - "TRIGGER" INPUT WITH ENVELOPE FOLLOWER, DECAY, & VCA
- TAIL - ADJUST DECAY TIME OF ENVELOPE FOLLOWER
- MUSKRAT SWITCH + INPUT - CAUSES CHIP TO GLITCH ØUT WHEN SWITCH IS ACTIVE OR WHEN 2V OR HIGHER IS RECEIVED
- USE RAT NEST TO SWITCH UP YOUR CHIP NEEDS!
MUSKRAT & FULL RAT NEST Bundle
Description
Includes MUSKRAT in SILVER, RAT NEST Expander and MSG Expansion CHIPS for the Full MUSKRAT experience!
The Vile little wavetable drum...
MUSKRAT is a flexible, 8-bit wavetable drum synth. There are 23 on-board wavetables to choose from, either manually or via bipolar CV input. Pitch and phase distortion include bipolar CV inputs and accept -5v to +5v. The "Trigger" input is designed without input conditioning and picks up signals of all varieties (In other words it is an envelope follower circuit). You can plug an external CV or offset into this input and it will operate like a regular VCA. For even more extreme sound mangling, engage the MUSKRAT mode via the switch to feed a random number into the phase accumulator at the internal clock rate. This mode also includes a gate input that acts as an "accent".
Basically, pick a kraptastique wave, change the pitch, mangle the hell out of it, feed the rodent, BANG! it; you’ve caught yourself a Muskrat. WARNING: if you feed the rodent (“my...god...what...have...we...done?”) it’s brain goes into a fiery frenzy and spits out glitch after glitch of holy bleepbloopness. If you yank on it’s tail it’ll shriek a lil’ longer, especially if you’re pulling it at long range. Beware, once you let this critter out of the cage it will want to nest so BANG! it on the head!

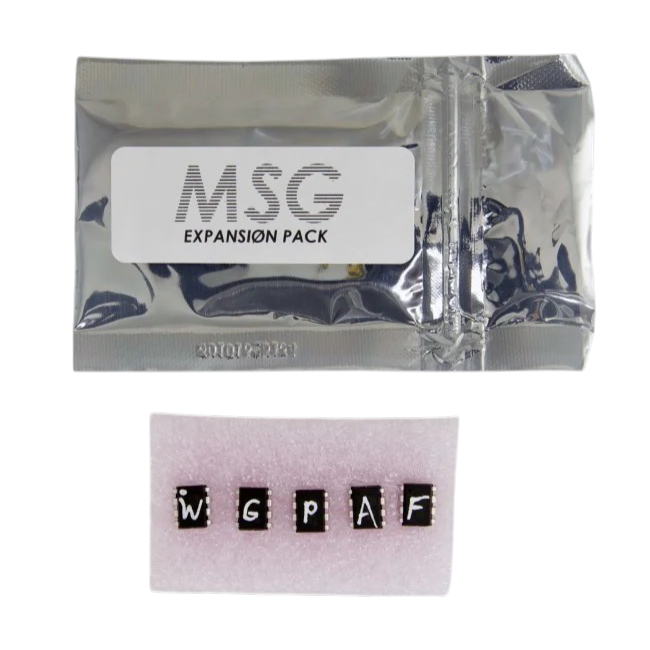

Also included is the RAT NEST Expander - A simple passive chip selector for Muskrat. Specialized cables, daughterboard and 5 MSG chips - Wavetable, Granular, Phase Distortion, Amplitude Modulation, Frequency Modulation are all included. The installation process for RAT NEST is simple and fast.
Features
Specifications
- TOTAL WIDTH: 14HP
- DEPTH: 20mm
- POWER: 55mA +12V, 20mA -12V, 0mA 5V
$399.00
