Clatters Machines

EXP-FX Sibilla Dual Expander (Black Panel)

Description

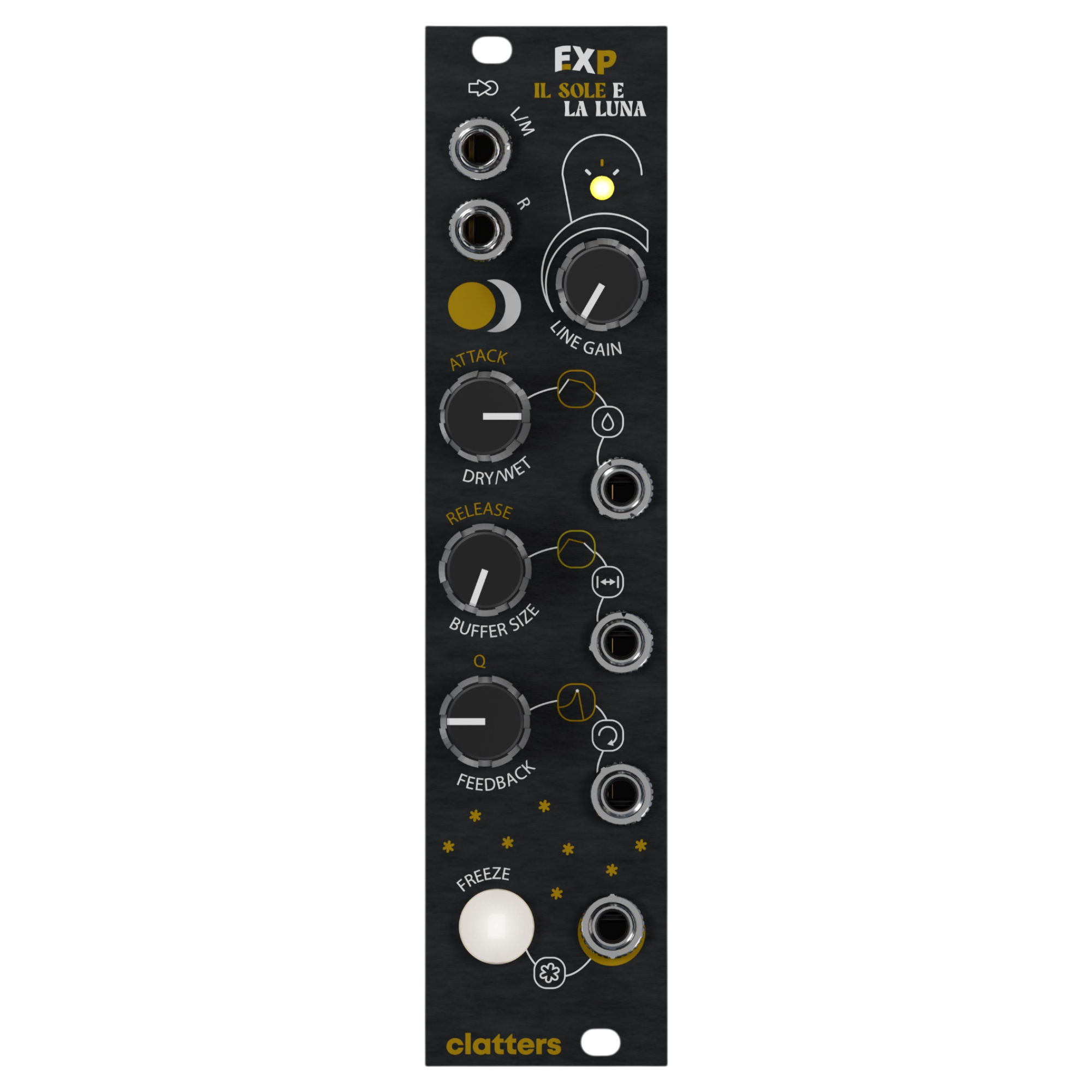

EXP-FX, Il Sole e la Luna (eg. The Sun and the Moon) is an expansion module for Sibilla, aiming to let you admire the same panorama under two different glows.

Depending on the Sibilla uploaded firmware, EXP-FX can either act as an actual Sibilla expander, giving you direct control on more Sibilla’s parameters, or can turn your module into and effect, allowing you to process your favourite oscillator or line instrument the same way Sibilla processes its internal waveforms.

EXP (il Sole)

Expands your Sibilla by giving you more control on the internal AR envelope and filter resonant frequency.

FX (la Luna)

With configurable eurorack/line stereo inputs, turns your Sibilla into an intricate stereo pitch shifting delay effect. Split your incoming sound in two separate pitch shifted tracks whose stereophony is affected by LFOs movements, white noise, delay lines and sampled bits of audio.

Features

  • Expansion module for Sibilla with 2 different modes
  • EXP firmware gives you more control on the internal AR envelope and filter resonant frequency.
  • FX firmware turns your Sibilla into an intricate stereo pitch shifting delay effect.

Specifications

  • WIDTH: 6HP
  • MAX DEPTH: 18MM
  • SIBILLA + EXP POWER: 140mA +12V, 33mA -12V, 0mA +5V
  • SIBILLA + FX POWER: 142mA +12V, 35mA -12V, 0mA +5V
  • (EXP-FX doesn't draw current directly from your system but relies on Sibilla's power)

$299.00
