The ERD/geomantic toolkit is designed to provide key utilities for the core ERD system comprising All the Colours of the Noise, caput draconis, TOAD, and VIA. These can also be used in any system as generic utilities with an emphasis on routing, switching and fine control.

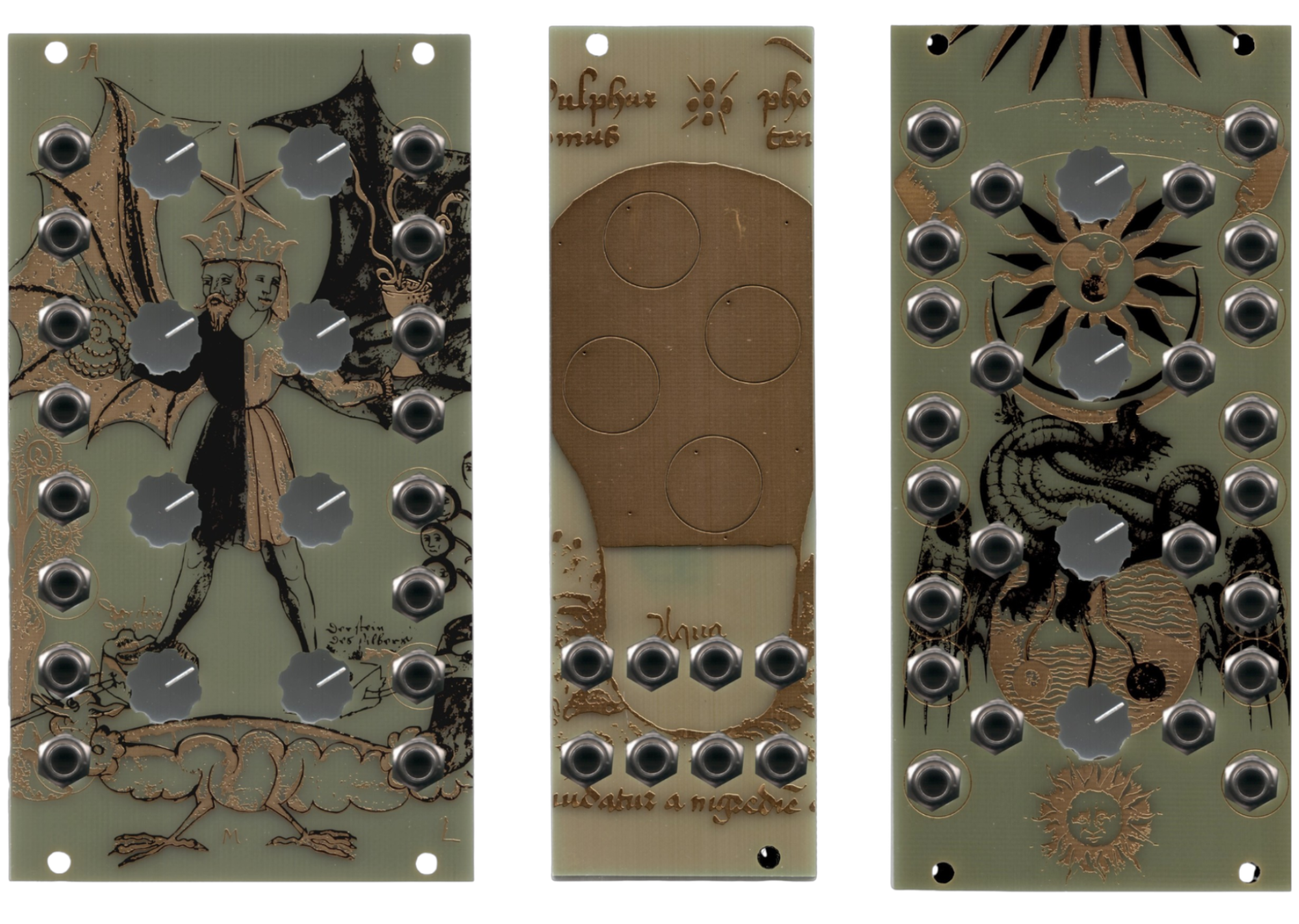

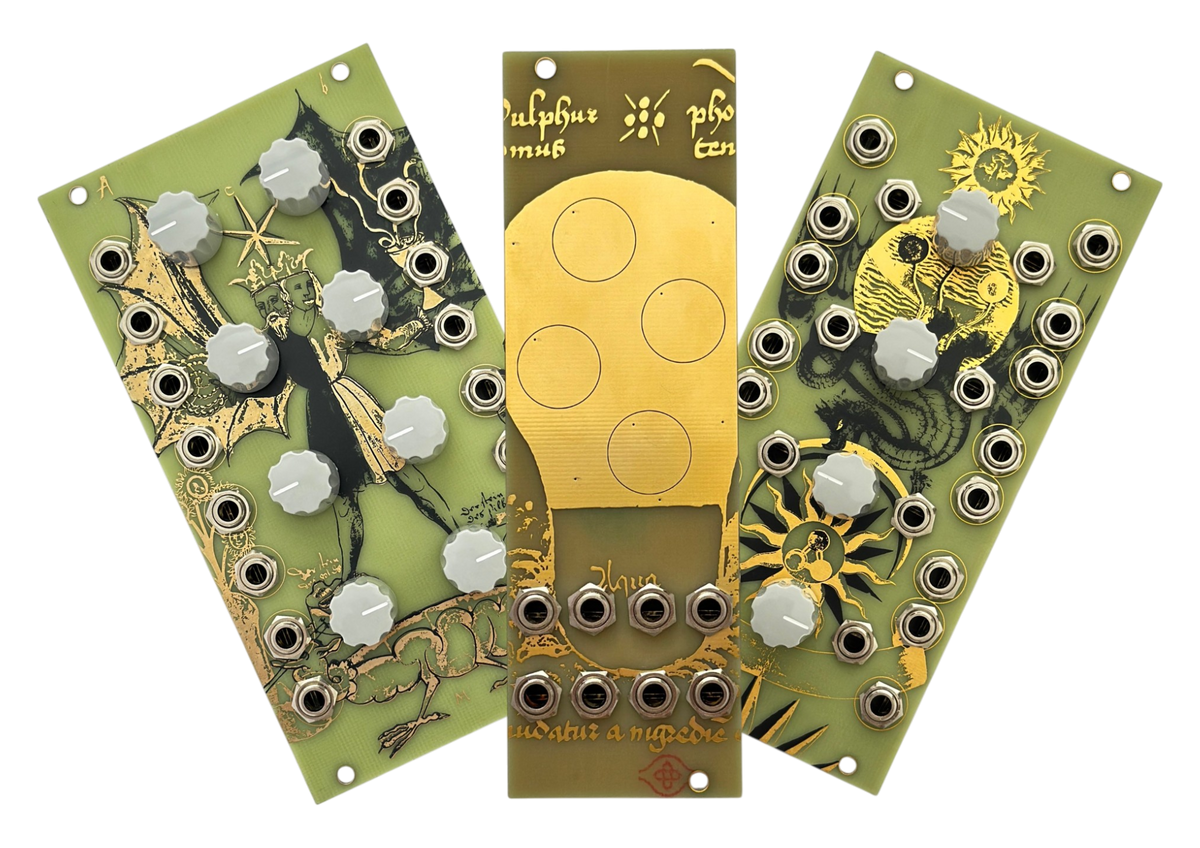

The Complete toolkit includes all three modules - amissio, conjunctio & acuisitio for all your ERD patching enjoyment.

Amissio allows for the touchable toggling (held switching) of four sets of patchable connections: connect or disconnect between key patch points using the touch of a finger or other body part. External signals can also be used to control the switching of signals routed through the skin.

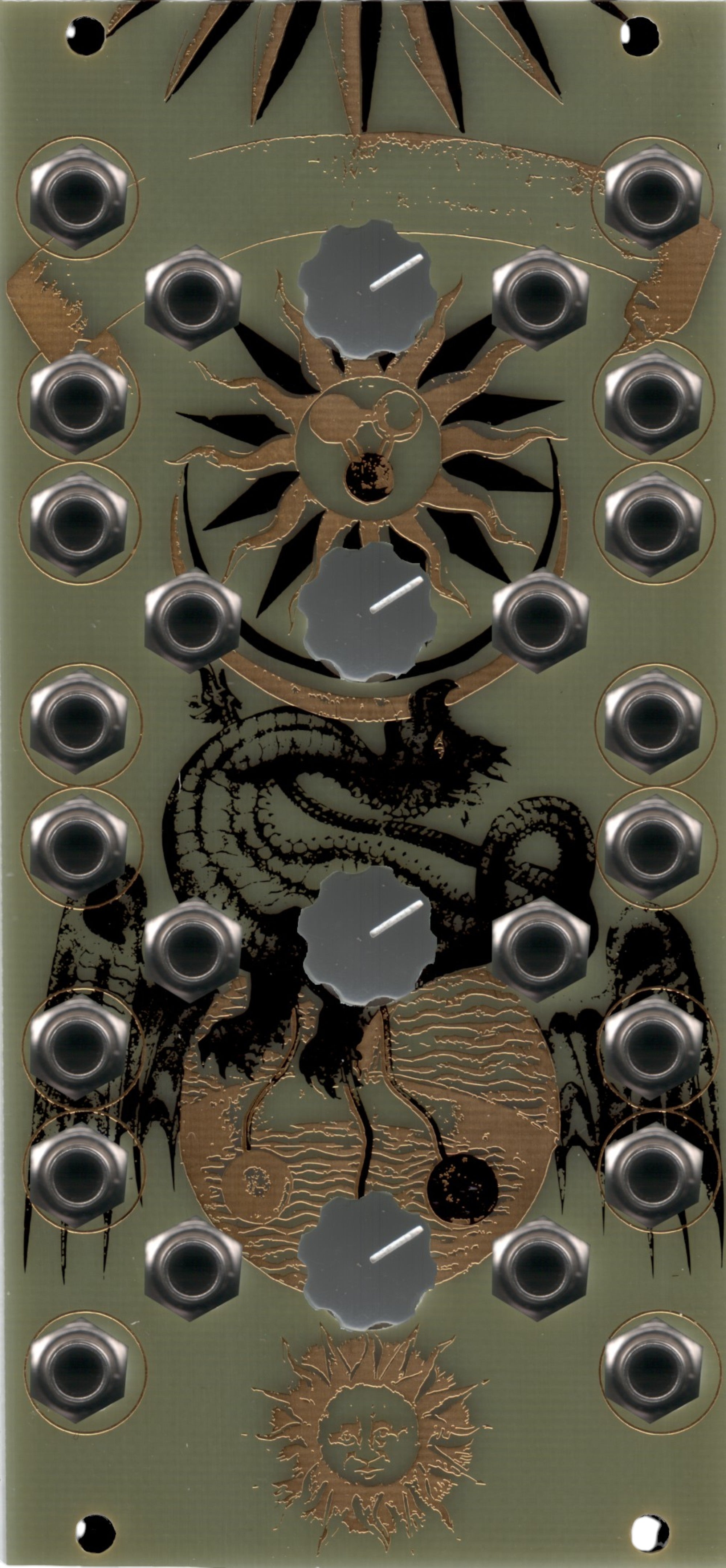

Conjunctio provides four sets of comparators, for use as gates and triggers, with four associated or linked conditional signal routing switches (two signals to one), to allow for dynamic, non-linear patching under ouroboric control. Routing can thus be controlled by the threshold and contrast of several signals.

Acquisitio is designed for the precise voltage control of other modules, in this case targeted at the generation of refined ERD/BREATH and ERD/TOAD control signals. Acquisitio presents four sets of offsets (0-10v) which are combined with four sets of VCA signals and a subtraction signal. Acquisitio can also be used as a traditional VCA with offsets and subtraction included, and signals between sections of ERD/TOAD can be passed and processed through acquisitio.

For more information visit the ERD website https://www.1010.co.uk/org/ERD.html
